2025 Kubota Z724KHNC-54
$0.00
Product successfully added to the Quote List

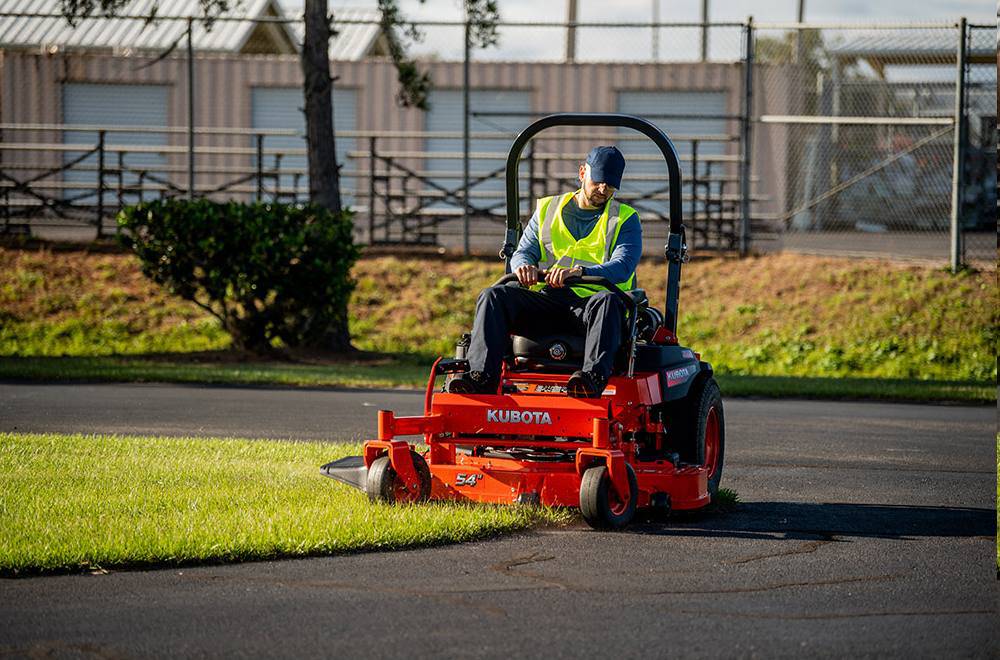

From the moment you climb up into the Z724KHNC-54’s high back adjustable seat, one thing is for certain; this isn’t your grandfather’s mower. By utilizing dual Parker HTG14 transmissions and a Kohler engine, rated at 23.5 horsepower, your Z724KHNC-54 is suited to bring you robust performance and make full use of its three blades and one to five-inch cutting range. You’ll work the 9-to-5 with ease, courtesy of a 11.6-gallon fuel tank and once it’s all said and done, you’ll look back at your handiwork and wonder why you didn’t make the switch to a Z724KHNC-54 sooner.
Mower Deck
- The mower deck can be easily attached and detached just by inserting or removing the two pins on either side of the Z700
- Easy mower belt replacement - belt drive is conveniently located for easy access
Commercial Grade Engines
- The Z700 Series mowers are powered by KAWASAKI® FX and KOHLER® Command PRO engines, renowned for their superior performance and lasting durability
- Open engine compartment allows access to vital components around the engine without obstructions
Easy Maintenance
- Battery and harness parts can be accessed just by raising the seat panel; fuel shutoff and fuses are also located under the seat.
- Equipped with dual Parker® transmissions; designed for easy maintenance, each transmission has an integrated pump and motor for increased efficiency and simplified service (*Parker® is a registered trademark of Parker Hannifin Corporation)
Operador Comfort
- 21.2” high back seat with premium adjustable suspension and 3" vertical to 6" front to back adjustment
- Smooth lever operation for effortless control and drivability with adjustable damper force
- Adjustable levers and mower deck lift pedal can be raised or lowered to better match the physique of the operator
Frame And Front Tires
- Thicker and more durable main frame (2” x 3” tubular steel frame)
- Flat-free front tires to better absorb impacts on the job and reduce the worry of downtime
Features
- Spindle Design: Maximize time on the job with sealed, greaseless spindle bearings.
- Exceptional Cut: Each model features a 6" deep, fully welded, 8 gauge steel mowing deck, providing outstanding stability with a fast, high quality cut.
- Low Center of Gravity: The Z700 Series mowers ensure a high level of stability due to the fuel tank located under the seat and large-diameter, wide tread rear tires.
- Control Panel : Ergonomically positioned instrument panel gives you easy access to starting controls, hour meter and other indicators for the machine.
- Parking brake: Located on the foot pan, the parking brake can be easily locked and released with just one foot – no need to remove your hands from the steering levers.
- Quick dial height adjustment system: Quick dial height adjustment system lets you adjust the cutting height with a turn of a dial and press of the pedal.
- Foldable ROPS: Foldable ROPS is standard equipment on all models to ensure operator safety on the job at all times.
- Cup Holder and Storage: Located right next to the seat, the handy cup holder keeps beverages, tools and valuables close at hand.
- Operator Platform: The wide and angled operator platform offers ample legroom so you can work more comfortably.
Specifications
- Deck Size: 54 in.
- Engine: Kohler Command Pro CV732
- HP: 23.5
- Transmission: Parker HTG14
- Deck Drive: Belt
- Fuel Capacity: 11.6 gal
- Speed: 11.2 mph
- Rear Tire: 24 x 9.5 - 12
- Front Tire: 13 x 5 - 6
Additional information
| ENGINE | Engine Manufacturer Kohler Horse Power 23.5 HP Engine Type Command Pro CV732 |
|---|---|
| GENERAL | Transmission Parker HTG14 Fuel Capacity 11.6 gal. |
| DECK | Deck Size 54 in. Discharge Type Side |
