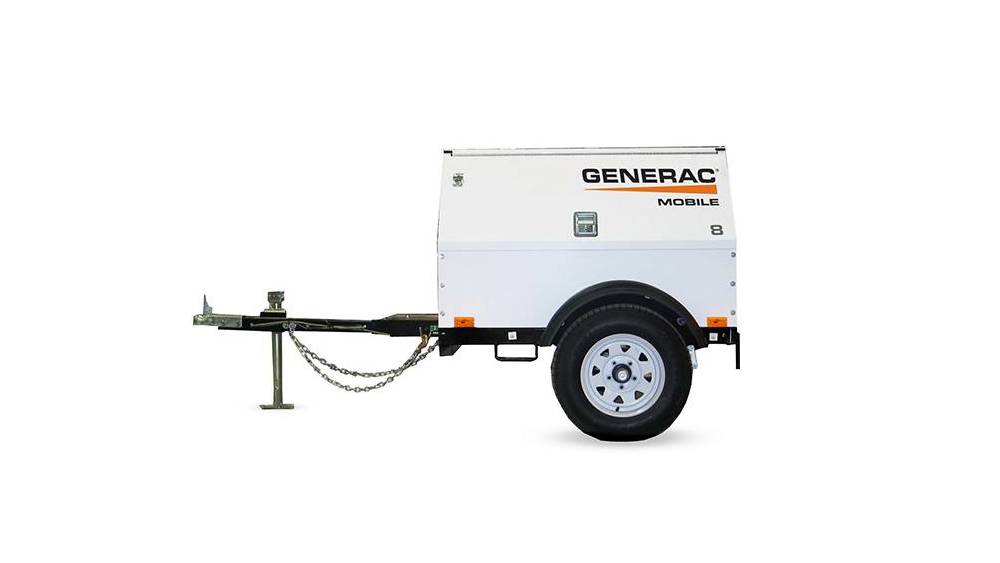

2024 Generac MLG8K Diesel Generator
Contact us for pricing!
Affordable, Highly Mobile Power
The MLG8K diesel generator provides just the right combination of output, portability, ruggedness, efficiency and affordability for on-the-go, single smaller-load, single phase power needs.
Generac Mobile recognizes environmental responsibility and continues to meet emission regulations with the addition of our Interim & Tier 4 Generator line. The MLG8K generator is powered by a Kubota diesel engine. Proven power you can trust, while maximizing fuel efficiency and high performance
Tough And Durable
- Full tubular steel frame, lockable enclosure
- Durable, fade resistant, baked on white powder coat finish
- Stainless steel hinges, exterior hardware and pad lockable door latches
Proven Reliability
- Key switch to preheat (glow plug), start & stop
- Automatic low oil level / high temp shutdown alerts
- 40A main breaker
- 2 year - 2,000 hour warranty
- Marathon voltage regulation within +/- 1%
Easy To Use
- Self-priming 3 cylinder Kubota engine
- External convenience outlets with individual breakers
- External emergency stop switch
Standard Features - Engine System
- Isolated Mounted Engine Supports
- Paper Element Air Filter with Safety Cartridge
- Fixed Speed Fan Drive
- Spin On Cartridge Oil Filter
- Level 1 Fan and Belt Guards
- Oil Drain Extension
- Factory Filled Oil and Coolant
- 440 CCA Wet Cell Battery
Standard Features - Cooling System
- Capable of Operating at 120 °F (49 °C) Ambient
- Oil Filter: Spin-On Cartridge, Full Flow
- 50/50 Coolant (Ethylene Glycol)
- Factory Installed Radiator
- UV/Ozone Resistant Hoses
- Closed Coolant Recovery System
Standard Features - Fuel System
- Fuel Tank Capacity – gal (L): Total: 56.0 (212), Usable: 55.8 (212)
- Fuel Cap with Lanyard
- Primary and Secondary Fuel Filters
- Fuel Level Gauge
Standard Features - Control System
- 40 A Start Limit Breaker – Ensures No Load Condition Exists Before Starting
- Engraved Aluminum Punched and Anodized Control Panel
- Key Activated Switch with Four Positions (Glow Plugs, Off, Run, Start)
- Hour Meter
- Automatic Shutdown for High Coolant Temperature and Low Oil Pressure
Standard Features - Generator System
- Brushless Excitation
- 2/3 Pitch
- Four Pole
- Class F Insulation
- Sealed Bearing
- Full Load Capacity Alternator
Standard Features - Power Distribution
- Convenience Receptacles with Individual Breakers: (2) 120 V, 20 A, GFCI, Duplex (NEMA 5-20R), (1) 240 V, 30 A, Twistlock (NEMA L6-30R)
Standard Features - Enclosure
- White Polyester Powder Paint (UV and Fade Resistant and High Temperature Cured)
- Fully Lockable Enclosure
- Exterior Emergency Stop Switch
- Multi Lingual Operating and Safety Decals
- Document Holder with Owner’s Manual – Includes AC and DC Wiring Diagrams
- License Plate Holder with Light
- Stainless Steel Hinges, Door Latches, and Exterior Hardware
Standard Features - Trailer
- DOT Approved Tail, Side, Brake, and Directional Lights; Recessed Rear Lights
- Illuminated License Plate
- Transportation Tie Downs
- Safety Chains with Spring Loaded Safety Hooks
- 2 in (50.8 mm) Ball Hitch
- Single Axle 2,200 lb (998 kg) Leaf Spring
- 2,000 lb (907 kg) Tongue Jack with Footplate
- 13 in (330 mm) Tires
- ST175/80D13 Tubeless Tires 6 ply
- Single Wall Polyethylene Fenders
- 48 in (1,219 mm) Track Width
- Plug Adapter Flat 4
Standard Features - Warranty
- 2 Years, 2,000 Hours (Unlimited Hours Covered in First Year
Engine Specifications - General
- Make: Kubota D1105-E3BG
- EPA Emissions Compliance: Tier IV Final
- Aftertreatment System: None
- Cylinder #: 3
- Type: In Line
- Displacement: 68.5 in³ (1.2 L)
- Bore-in (mm): 3.27 (83)
- Stroke - in (mm): 3.64 (92.4)
- Compression Ratio: 17.6:1
- Intake Air Method: Naturally Aspirated
Engine Specifications - Engine Governing
- Governor: Mechanical
- Frequency Regulation (Steady State): <5%
Engine Specifications - Lubrication System
- Oil Pump Type: Trochoid
- Oil Filter Type: Spin-On Cartridge
- Crankcase Capacity - qts (L): 3.5 (3.3)
Engine Specifications - Cooling System
- Cooling System Type: Water Jacket
- Water Pump Type: Belt Driven
- Fan Type: Pusher
- Fan Speed - rpm: 1,800
- Fan Diameter - in (mm): 12.99 (330)
- Cooling System Capacity - qt (L): 4.5 (4.2)
Engine Specifications - Fuel System
- Fuel Type: Ultra Low Sulfur Diesel
- Fuel: ASTM Diesel Fuel Oil No.2 (JIS K2204 Gas Oil Specification No.2 or 3)
- Fuel Pump Type: Gear
- Injector Type: Direct Injection
- Engine Type: Direct Injection
- Fuel Supply Line Diameter - in (mm): 0.313 (7.9)
- Fuel Return Line Diameter - in (mm): 0.313 (7.9)
Engine Specifications - Engine Electrical System
- System Voltage: 12 VDC
- Battery Charger Alternator: 60 A
- Battery Size: 440 CCA
- Ground Polarity: Negative (-)
Additional information
| ENGINE | Displacement 38.5 cu. in. (1.2 L) |
|---|---|
| DIMENSIONS | Length 105 in. (2.67 m) Width 56 in. (1.42 m) Height 68 in. (1.73 m) Weight 1,030 lb. (467 kg) |
| OTHER | Fuel Tank Capacity 56.0 gal. (212 L) Run Time 80 hr |
