2025 Generac Portable Generator, 5000W
$0.00
No Job Too Tough. No Workday Too Long.

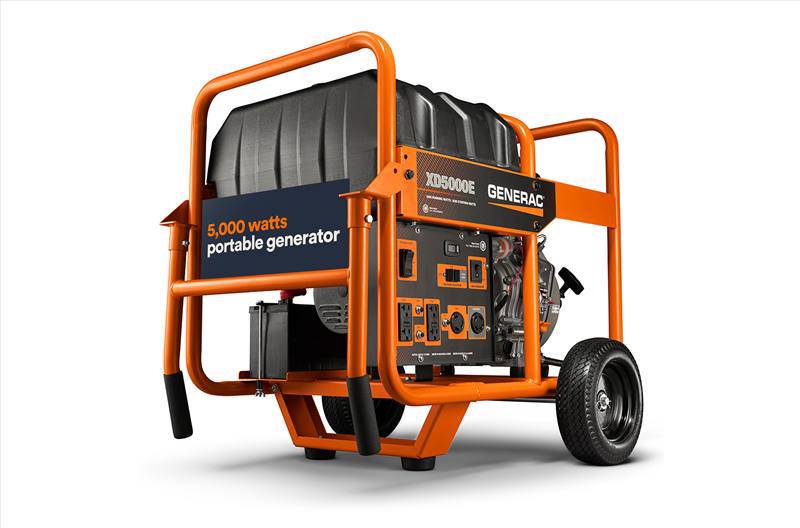

If you’ve got a tough job to do, look no further than the XD5000E generator.
The sturdy steel frame features an integrated lifting eye for easy transport and on-site security. 6% total harmonic distortion — for smooth operation of tools, appliances, even sensitive electronics. And it’s engineered to keep on running, thanks to its large fuel tank.
Specifications
- Product Series: XD5000E
- Model: 6864-0
- Ac Rated Output Running Watts: 5000
- Ac Maximum Output Motor Starting Watts: 5500
- Ac Voltage: 120/240
- Ac Frequency: 60 Hz
- Rated Ac Amperage: 41.7 / 20.8
- Total Harmonic Distortion: <6%
- Engine Displacement: 435Cc
- Engine Type: Air-Cooled, 4 Cycle, Vertical Cylinder Diesel
- Engine Rpm: 3600
- Recommended Oil: Sae 10W-30
- Oil Capacity Qt (L): 1.7 (1.6)
- Lubrication Method: Pressure
- Fuel Shut Off: On Fuel Tank
- Starting Method: Electric with Recoil Back-up
- Battery Included: No
- Battery Type: 12V 35Ah, Group U1
- Battery Part No.: Na (Purchase Locally)
- Battery Dimensions: Group U1 Has A Standard Case Size
- Low Oil Shutdown Method: Low Pressure
- Neutral Bonded To Ground: Yes
- Start Switch Type: Start/Run/Off
- Start Switch Location: On Control Panel
- Fuel Gauge: On Cap
- Fuel Tank Capacity Gal (L): 12 (45.4)
- Run Time At 50% Of Rated Load (Hours): 32.4
- Warranty- Residential: 2 Year Ltd
- Warranty- Commercial: 2 Year Ltd
- Included: Engine Oil, Owner'S Manual
- Portability Kit (Sold Separately): Model 0069100
- Handle Style: Folding / Locking
- Wheel Type: 10.4" (264.1Mm) Solid
- Carton Length In (Mm): 21.5 (546)
- Carton Width In (Mm): 26.5 (673)
- Carton Height In (Mm): 5.5 (140)
- Unit Weight Ibs (Kg): 24.5 (11)
- Shipping Weight Ibs (Kg): 24.5 (11)
Dimensions and Weight
- Length in (mm): 33.1 (840.74)
- Width in (mm): 22.5 (570)
- Height in (mm): 25.6 (650)
- Extended Length in (mm): 35.75 (905) Handle Down
- Carton Length in (mm): 33.9 (861.06)
- Carton Width in (mm): 24 (608)
- Carton Height in (mm): 31.6 (803) with pallet
- Unit Weight Ibs (Kg): 252 (114)
- Shipping Weight Ibs (Kg): 257 (117)
Features
- Diesel Power: requires less maintenance, is more efficient, and provides a long life.
- Yanmar Lw Series 435Cc Air-Cooled Direct Injection: Epa Tier Iv, Industrial-Grade Engine.
- Less Than 6% Total Harmonic Distortion: For Clean, Smooth Operation Of Sensitive Electronics, Tools, And Applications.
- Large-Capacity 12 Gallon Fuel Tank: With Fuel Gauge Provides A Long Run-Time Of 32.4 Hours At 50% Load.
- Compression Release Lever: Provides Easier Starting During Cold Ambient Temperatures.
- Low Oil Pressure Shutdown: Automatically Safeguards Engine From Damage.
- Fuel Primer Bulb: provides quicker starts when the fuel tank has previously run empty.
- Durable: Fully Welded 1 ¼ Steel Frame.
- Integrated Lifting Eye: Provides Easy Transport And Security On The Jobsite.
- 120/240V Selector Switch: Provides Full 120V Power.
- Single Touch Electric Start: Provides Hassle-Free Start-Up (Battery Not Included).
- Hour Meter: With Maintenance Resets Tracks Usage And Monitors Maintenance Cycles.
Additional information
| Engine | Engine Type Air-cooled, 4 cycle, Vertical Cylinder Diesel Displacement 435cc |
|---|---|
| Dimensions | Length 33.1 in. (840.74 mm) Width 22.5 in. (570 mm) Height 25.6 in. (650 mm) Weight Unit: 252 lb. (114 kg) ; Shipping: 257 lb. (117 kg) |
| Other | AC Output 5000 Fuel Tank Capacity 12 gal. (45.4 L) Run Time at 50% of Rated Load: 32.4 |
