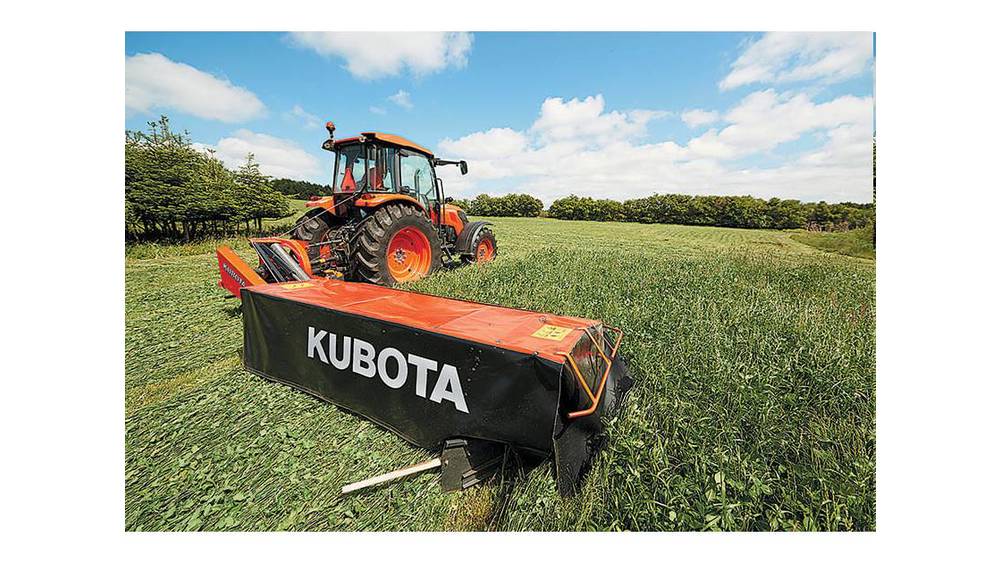

2025 Kubota DM1024
Effective and reliable, the Kubota DM1024 Disc Mower brings you a working width of 7’ 9” and the confidence you’re looking for in a hay tool. A hydraulic cylinder easily lifts the disc mower without utilizing the three-point linkage and when you’re transporting it to and from the field it nimbly folds into a vertical position.The spring loaded breakaway reduces damage from obstacles by protecting the cutterbar. Only requiring a minimum of 46 PTO, the DM 1024 utilizes three counter rotating disks allowing a smooth cut.
Features
- Available Working Widths: DM1017 - 5'6", DM1022 - 7'2", DM1024 - 7'9"
- Spring Loaded Breakaway: When an obstacle is encountered, the DM1000 series swings backwards to protect the cutterbar; by reversing, the mower is reset into working position.
- Fast Lift on Headlands: The mower is easily lifted via a hydraulic cylinder without activating the tractor's 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.
- Vertical Transport Position: When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.
- Counter-Rotating Three-Bladed Discs: With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.
Specifications
- Cutting Width ft. (m): 7' 9" (2.4)
- Weight lbs. (kg): 992 (450)
- Transport Width ft. (m): 3' 9" (1.2)
- Hitch (CAT): 2
- Pin Hitch: Not Available
- PTO RPM: 540
- Minimum PTO Horsepower Required HP/KW: 46/34
- Number of Disc and Knives: 6/18
- Remotes: 1
- Cutterbar Operating Angle: -45/+15
- Stubble Height in. (mm): 0.75“ - 2“ (19-51)
- BreakAway: Standard
- Non-Stop BreakAway: N/A
- Overrun Clutch: Standard
- Swath Board (RH/LH): Standard/Optional
- Swath Rollers (RH/LH): Optional (RH)
- High Skids +20/+40/+80 mm: Optional
- Lighting Kit: Optional
Additional information
| GENERAL | Working Width 7 ft 9 in Weight 992 lbs Recommended HP 46 HP |
|---|
