2025 Kubota RA210CR

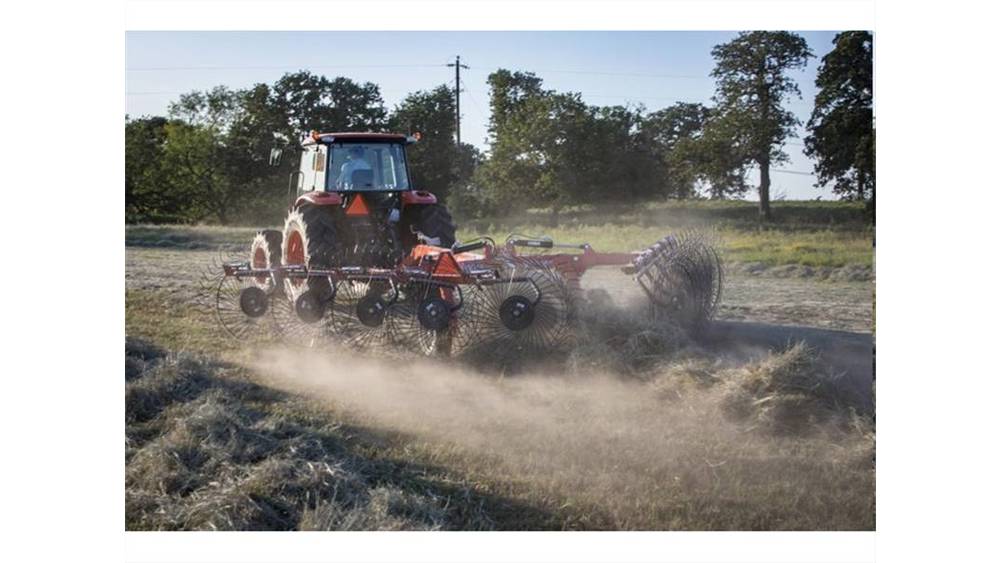

For the ultimate experience in raking equipment, you can’t go wrong with the Kubota RA210CR. Independent wing cylinder lockouts make for easier transport, alongside a 9’ 2” transport width. Higher hitch? The height adjustment holes available on the RA210CR let you adjust the hitch height and make sure your tractor easily tows the 21’ working width and 25’ 4” working length. You’ll move efficiently through the field and make sure no hay gets left untouched with the RA210CR!
Features
- Safe Transport: With Independent Wing Cylinder lockouts, transport is safe and easy on the road and through narrow gates or openings. Transport width ranges from 9'2" to 9'6".
- Individual Rake Wheel Suspension: Individual Rake Wheel Suspension is ideal for rough and uneven hay fields allowing each wheel to act independently and follow ground contour.
- Drawbar Height: Adjustable for 12 different tractor drawbar heights to ensure proper working angles of the rake wheels.
- Height Adjustment: Height adjustment holes allow the hitch to be adjusted from a height of 13.5" to 23.75".
- Kicker Wheel Options: Single and Dual Kicker Wheel options are used to move material that would otherwise stay in place.
- Telescoping Wing Arms: Telescoping Wing Arms allow for an additional 1.5 ft. of adjustment by utilizing the jack stand.
Specifications
- Transport Length ft. (m): 24' 10" (7.7)
- Working Length (Max.): 25' 4" (7.7)
- Transport Width ft. (m): 9' 2" (2.8)
- Transport Height ft. (m): Min: 8' 4" (2.5) Max: 9' 7" (2.9)
- Working Width ft. (m): Min: 18' (5.5) Max: 21' (6.4)
- Windrow ft. (m): Min: 36" (.9) Max: 89" (2.3)
- Working ft. (m): 55" (1.4)
- Weight lbs. (kg): 1790 (812)
- Wing Spread: One hole changes windrow and working width 6 (15) to 7 (18)
- Hydraulic Circuits: closed-center or open-center, one remote
- Hydraulic Power Required: 1800psi, 10gpm
- Minimum PTO Horsepower Required HP/KW: 40 HP
Additional information
| GENERAL | Working Width Min: 18 ft Max: 21 ft Weight 1790 lbs Recommended HP 40 HP |
|---|
