2025 Kubota WR1100

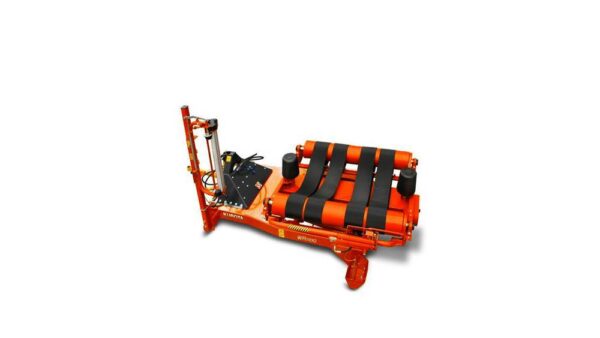

Protect your investment of quality forage harvesting with Kubota's WR1100C computer-controlled automatic bale wrapper. Equipped with a hydraulic film cutter and three-point mounted turntable wrapper, this model handles round bales up to 2,650 pounds and 47" X 50" in size. This wrapper has several features to increase its productivity such as being computer controlled, and it offers additional support legs for free-standing wrapping. Use the WR1100C for ideal storage site wrapping!
Features
- Wrapping at Storage Site: Kubota WR1100 series are three-point mounted wrappers with a simple but very reliable way of wrapping silage bales. When the bale is being transported to the storage site for wrapping, this three-point mounted version is the ideal solution. It can be mounted on the rear or front hydraulics of the tractor or used as a static machine with an external power pack unit.
- Easy Operation: The entire wrapping process of the Kubota WR1100 can be controlled remotely from the loading tractor with the optional remote control. One operator can do the entire process of loading, wrapping and stacking. Once the wrapping process is activated with the push of a button, the whole operation runs automatically. Push the button again to unload the wrapped bale. An optional automatic stop ensures that the bale is properly wrapped.
- Remote Control: The Kubota WR1100 is operated via computer controls with an integrated bale counter. A remote control is available as an option, making it the ideal solution for static use.
Specifications
- Transport Length ft.: 9"
- Transport Width ft.: 5.25"
- Transport Height in.: 69"
- Weight lbs. (kg): 1653
- Max Bale Size (L x D) in.: 47"x50"
- Max Bale Weight lbs.: 2650
- Mounted Wrapper: Standard
- Pull-Type Wrapper: Not Available
- Support Rollers/Belts (number): 2/4
- Automatic Film Cutter: Standard
- Max. Wrapping Speed rpm.: 30
- 1 Pre-Stretcher 750mm: Standard
- Pre-Stretcher 29.5" (750mm): Standard
- Manual Cable Control (M): Not Avaliable
- Electro Hydraulic Joystick (J): Not Available
- Programmable Computer (C): Standard
- Remote Control (C): Optional
- Oil Consumption (l/min): 28
- Wheels and Axles | 10.0/80-12: Not Available
- Fill Roll Magazine: Not Available
- Adapter Kit for 20" (500mm) Film Spool: Optional
- Bale and Wrap Counter: Standard
- Auto-Stop at End of Wrapping Cycle: Standard
- Film End/Tear Sensor (C): Optional
- Road Lights: Not Available
Additional information
| DIMENSIONS | Length 9 ft Width 5.25 ft Height 69 in Weight 1653 lbs |
|---|---|
| GENERAL | Bale Size 47 in x 50 in |
