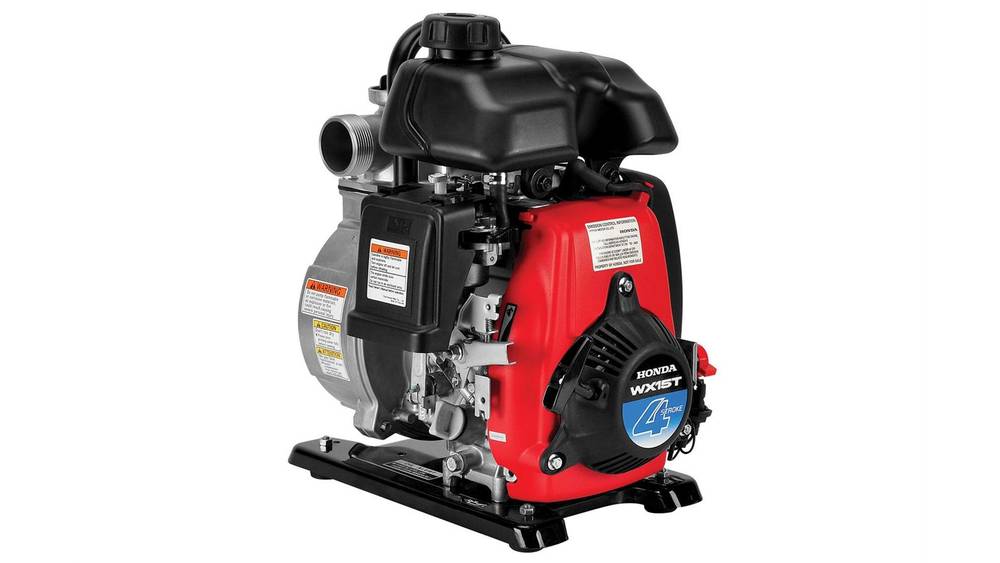

Honda Power Equipment WX15
$569.00
1 1/2" general purpose pump
Key Features
- Weighs only 20 lbs.
- 74 gal./min capacity
- Hose clamps and strainer included
Features
- Perfect for homeowners, gardeners, boat owners, and more: The WX15 is lightweight, compact, and easy to use.
- Easy starting Honda mini 4-stroke commercial engine: The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
- Lightweight aluminum pump: At only 20 lbs., the WX15 is easily portable.
- Hose clamps and strainer included
- Standard transport handle: The WX15 is easy to carry wherever you need it.
- 74 gal./min capacity
- Protected by Honda Oil Alert®: Protects the pump by shutting the engine off when low oil is detected.
Specifications
- Engine: GXH50
- Displacement: 49cc
- Bore and stroke: 1.65 in. x 1.42 in.
- Compression Ratio: 8.0:1
- Oil Alert: Std
- Pump Type: General purpose Centrifugal Self-priming
- Volute: Aluminum
- Impeller: Aluminum
- Mechanical Seal (Pump case / impeller): Carbon/Ceramic
- Priming time: 120 sec. at 16.4 ft.
- Drive system: Direct
- Discharge capacity: 74 gpm
- Suction port diameter: 1.5 in. NPT
- Discharge port diameter: 1.5 in. NPT
- Total head lift: 121 ft.
- Suction head lift: 26 ft.
- Maximum pressure: 52 psi
- Solids handling: N/A
- Dimensions (LxWxH): 14.0 in.x10.8 in.x14.8 in.
- Dry weight: 20 lb.
- Fuel Capacity: 0.20 gal
- Run Time @ Max Discharge: 0.9 hr
- Strainer Part #: 78325-YB0-751
- Residential Warranty: 2 years
- Commercial Warranty: 1 year
- CA Compliant: Yes
NOTES:
WARNING: California Prop 65 Information
Additional information
| ENGINE | Engine Manufacturer Honda Engine Displacement 49cc Bore and Stroke 1.65 in. x 1.42 in. |
|---|---|
| GENERAL | Pump Style General purpose Centrifugal Self-priming Impeller Aluminum Drive System Direct Discharge Capacity 74 gpm Discharge Port Diameter 1.5 in. NPT Suction Diameter 1.5 in. NPT Head Lift 121 ft. Suction Head Lift 26 ft. Max Pressure 52 psi Weight 20 lb. |
