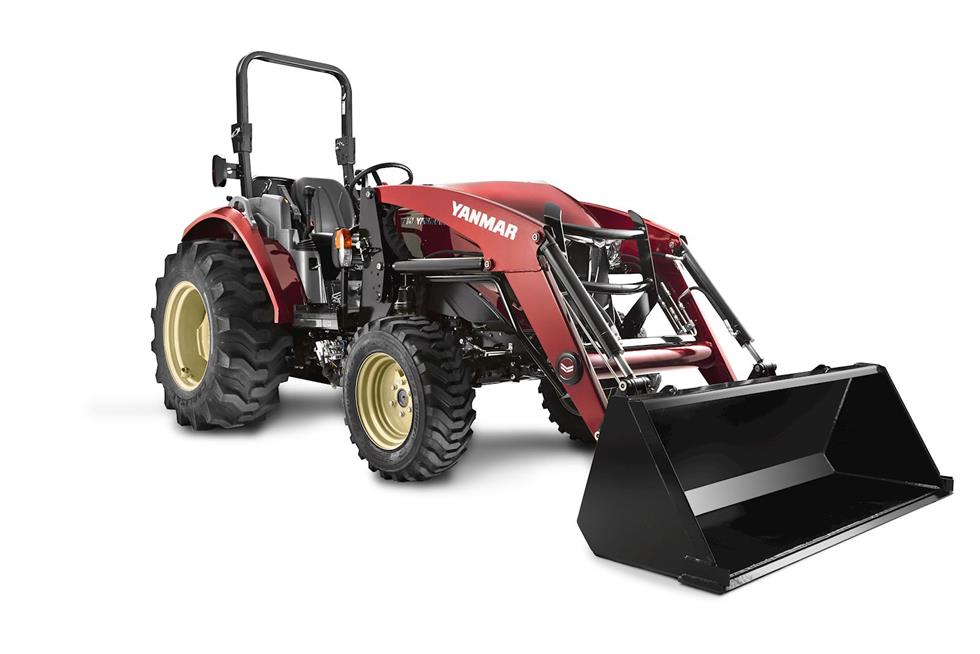

YT347

Contact us for pricing!

Category: Brand:

Advanced electronic controls.

High power transfer ratio
Repeatable operating speed
Low fuel consumption due to increased transmission efficiency
Step-less main shift
Best speed possible for implement
Clutch-less shifting
Vehicle stop without clutch
Our YT3 Series tractors are designed to make work easier for people of all skill levels. The YT347 includes an autothrottle that enables you to control engine and travel speed with the accelerator/drive pedal. This makes operating the tractor like driving a car or truck with an automatic transmission car. A/B Mode lets you preset your maximum travel speed. An anti-stall feature keeps your engine running when you dig or lift a heavy load. There’s also cruise control to keep you moving efficiently when mowing or traveling for long stretches. YANMAR designs and builds the major components, engine, front axle, transmission, and final drive, to work together.

No other compact tractor can boast the integrated hydraulic mechanical transmission (i-HMT) technology of the YANMAR YT347. The i-HMT creates the standard of operation for more versatile performance. No longer do you have to choose between an efficient, constant speed and flexible operation. With the YT347 and its innovative technology, you get both.

Whether you’re managing pastures, clearing brush, or hauling heavy loads, the YT347 offers an ideal blend of horsepower and maneuverability to handle the toughest compact tractor jobs. With 46 horsepower, it's engineered to outperform in all four seasons.

Its unmatched control systems make it one of the best compact tractors with loader compatibility for landowners with 25 acres or more.

Additional information

Model

Gross Power: EPA Regulation HP (kW) 46 HP (34.3 kW)*
Overall length (with 3PH and R4 Tires) 130.9” (3,325 mm)
Overall Width (with R4 Tires) 70.6” (1,793 mm)
Overall Height (with Roll-Over Protection, and R4 tires) 95.7” (2,431 mm)
Transmission I-HMT(Integrated Hydro Mechanical Transmission)
Drive Type 2WD/4WD selectable engagement
Lift Capacity (Pivot Pin) lb. (kg) 2,500 lbs. (1,134 kg)
Bucket Width in. (mm) 72” (1,829 mm)
PTO Power HP (kW) 39.5 HP (29.1 kW)
Rear PTO Speed/Engine RPM 540 RPM
Mid PTO Speed/Engine RPM
Wheel Base 75.9” (1,927 mm)
Front Tires (with R4) 10” – 16.5”
Rear Tires (with R4) 17.5” L – 24”
3-Point Hitch Category 1
