lawn mower

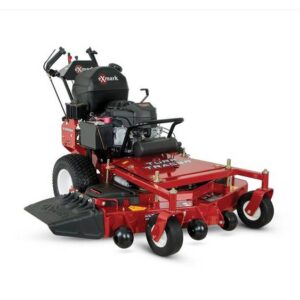

2024 Exmark TTX730EKC604N0 60″ Kohler

$0.00

Category: Brand:
Features
  • Patented Enhanced Control System (ECS): Recent university tests showed landscape professionals prefer our control system to all others on the market.
  • Floating Deck: Full-floating UltraCut™ deck. Side discharge standard, with molded discharge chute and option to bag or mulch.
  • Superior Air Filtration: This series comes standard with heavy-duty canister air filtration systems for longer engine life, more efficient performance and simple maintenance.
  • Clutch Performance: A large-capacity, electromagnetic PTO clutch provides excellent durability for extra-long life.
  • Superior Cut Quality: UltraCut™ Series 4 deck
  • Deck Options: With the Turf Tracer X-Series, you can choose up to a 60-inch deck.
Equipment
  • Starter: Electric
  • Steering Control: Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.
  • Front Caster Tires: 11 x 4.0-5, smooth tread, semi-pneumatic.
  • Drive Tires: 18 x 8.5-8, 4-ply Turf Master®
  • Safety Package: Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator's position without stopping engine
  • Parking Brake: Lever-actuated mechanical compression.
  • Electrical: 12-volt battery with 20-amp alternator.
  • Standard Features: Enhanced engine hour meter
Power Components
  • Transmission Brand: Hydro-Gear
  • Engine Brand: Kohler
  • Transmission Speeds: Infinitely Variable
  • Engine Model: ECV732
  • Engine Displacement: 747
  • Fuel System: Electronic Fuel Injected
  • Speed: Infinitely variable speed selection from 0- 6.75 mph (10.9 kmph) forward, 0-2.25 mph (3.6 kmph) reverse.
  • Engine Series: Command™ EFI
  • Transmission: Hydrostatic
  • Engine Spec: 3051
  • Engine Speed: 3,600 rpm
  • Drive: Hydro-Drive
  • Fuel Capacity: 5-gallon (18.9-L) fuel tank.
  • Air Filter: Heavy-duty canister air filtration system
  • Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1 in. (2.54cm) tapered shafts.
  • PTO Engagement: Electromagnetic 200 ft-lbs clutch.
  • Fuel Type: Gas EFI
  • Fuel Indicator: None
  • Drive Wheel Release: Allows unit movement without engine running.
  • Deck Lift: Manual lift with hairpin from hole to hole for position adjustment.
  • Carb Compliant: No
Decks
  • Deck Style: Floating Deck
  • Deck Style Description: Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.
  • Width / Cutting Deck: 60 in.
  • Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.
  • Cutting Heights: 1.5 in. (3.8 cm) to 4.5 in. (11.4 cm) in 0.5 in. (1.3 cm) increments.
  • Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75 in.-diameter cutter housing with 25mm (.98 in.) diameter spindle shaft and splined blade driver.
  • Blade Tip Speed: Approximately 18,500 fpm.
  • Blades: 3 Blades at 20.5 in. Length
Dimensions
  • Width: 73.0 in. (185.4 cm)
  • Height: 45.0 in. (114.3 cm)
  • Length: 104.8 in. (266.2 cm)
  • Curb Weight: 840
Turf Tracer X-Series Accessories
  • Equipment Cover, Large: Protect your zero-turn mower from the elements with this sturdy, waterproof cover. It's constructed from tough 600-denier polyester, making it abrasion- and tear- resistant. Its elastic opening provides a secure, snug fit.
  • Turf Striper: Customize your property with consistent and professional striping using a smooth operating roller design. Installs quickly, using existing mounting points, and easily adjusts for varying cutting height settings. Does not affect your ability to get up and over curbs.
  • Hydro Maintenance Kit: Kit includes: 3 quarts of Exmark® Premium Hydraulic Oil and 1 Hydro Filter
  • Operator Controlled Discharge Gate & Cable Assembly: Operator Controlled Discharge Lever (Foot)
  • Operator Controlled Discharge Lever, Hand: KIT, OCD HAND LEVER
  • 3-Bushel Bagger: Lightweight and easy to attach, this 3-bushel grass catcher fits most riders, stand-ons and wide-area walk-behinds. Adapter kit required for select models.

Additional information

Engine

Engine Manufacturer Kohler Engine Type ECV732 Displacement 747cc
General

Transmission Hydro-Drive Wheel Size 18 x 8.5-8, 4-ply Turf Master® Fuel Capacity 5 gal. (18.9 L)
Deck

Deck Size 60 in. Discharge Type Side; Optional: Bag, Mulch
