2025 Exmark LRS749AKC524A2 52″ Kohler ECV749
$16,040.00

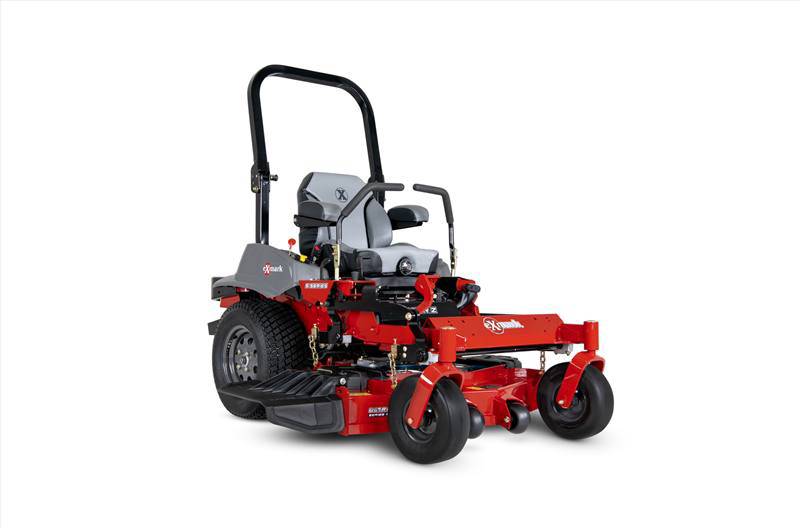

Discover the Exmark Lazer Z S-Series Mower
The Lazer Z S-Series makes up the core of countless landscape professionals’ fleets. With 30 years of refinement and innovation, the Lazer Z S-Series delivers maximum durability and Exmark Signature cut quality, with options for larger decks and more powerful engines than the Lazer Z E-Series. Select from 52-, 60-, or 72-inch UltraCut Series 4, or 60- or 72-inch UltraCut Rear Discharge cutting decks, with a choice of powerful Kawasaki or EFI Kohler commercial engines.
In all, the Lazer Z S-Series delivers the power and productivity to make quick work of large jobs, with the reliability and long-term value Exmark owners expect.
Equipment
- Upc: 193308242309
- Width / Cutting Deck: 52"
- Drive: Hydro-Drive
- Starter: Electric
- Steering Control: Hydraulically Dampened Twin Levers Adjustable Both Fore And Aft. Also Has 2-Position Height Adjustment. Adjustable Dampers (3 Positions) To Customize Drive Responsiveness
- Caster Forks: .50" Thick Caster Yoke Arms.
- Front Caster Tires: 13 x 5.0-6, smooth tread, semi-pneumatic
- Drive Tires: 23 X 9.5-12, 4 Ply Grassmaster Tl
- Safety Package: Operator Presence Controls (Opc) And Drive System Interlock, With Safety Interlock System Indicators.
- Parking Brake: Lever Actuated Disc Brake
- Tractor Frame: Unibody, Welded, Heavy-Duty 1.5" X 3" Tubular Steel.
- Blade Spindles: No Maintenance, Sealed And Non-Greasable Spindles; 7.75"-Diameter Cutter Housing With 25Mm (.98") Diameter Spindle Shaft And Splined Blade Driver.
- Electrical: 12-Volt Battery With 20-Amp Alternator.
- Standard Features: Engine Hour Meter And Cup Holder
- Seat: Deluxe, bolstered suspension seat with Elastomeric Vibration Control material. Adjustment: Fore and aft from Operators’ Position.
Power Components
- Engine Brand: Kohler
- Transmission Speeds: Infinitely Variable
- Engine Model: Ecv749
- Engine Displacement: 747
- Engine Series: Command™ Efi
- Speed: Infinitely Variable Speed Selection From 0–10.0 Mph Forward, 0–7.0 Mph Reverse
- Engine Spec: ECV749
- Engine Speed: 3,750 Rpm
- Air Filter: Heavy-Duty Canister Air Filtration System
- Fuel Capacity: 12-Gallon Single Fuel Tank With Single Fill Location
- Drive Description: Two Exmark Exclusive Parker Unitized Pump And Wheel Motor Systems With No Hoses, Integrated Cooling Fans, 1.7-Quart Integrated Reservoir, Spin-On Filter And Heavy-Duty Components. 12 Cc Pumps And 14. 5 Cubic Inch Motors.
- Fuel Type: Gas Efi
- Pto Engagement: Magstop Electromagnetic 200-Ft-Lb Clutch With Spot Brake
- Drive Wheel Release: Allows Unit Movement Without Engine Running.
- Fuel Indicator: Yes - electronic Sender
- Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
- Carb Compliant: Yes
- Rops: 2-post foldable ROPS standard with seat belt and latch.
Decks
- Deck Style: Floating Deck
- Deck Style Description: Full-Floating Ultracut Series 4. Side Discharge Standard, With Molded Discharge Chute And Option To Bag Or Mulch.
- Deck Construction: 10-Gauge Top That Is Formed And Continuously Seam Welded, 7-Gauge Side Skirt And 7-Gauge Formed And Welded Spindle Mounting Locations For Improved Strength And Reduced Weight.
- Cutting Heights: 1.0" To 5.5" In 0.25" Increments
- Blade Tip Speed: Approximately 18,500 Fpm
- Blades: 3 Blades At 20.50" Length
Dimensions
- Width: 64.8"
- Height: 70.5"
- Curb Weight: 1136
- Length: 79.2"
Features
- Less Time At The Pump: A Large 12-Gallon Fuel Tank With A Single Fill Location Offers More Runtime Between Fill-Ups.
- Built To Last: From The Heavy-Duty Unibody Frame, To The Formed And Welded High-Strength Steel Cutting Deck, The Lazer Z S-Series Is Built To Thrive In Extreme Commercial Cutting Environments.
- Onboard Diagnostics: Check Vital Mower Functions At A Glance On The Digital Screen. Functions Include An Electronic Fuel Gave With Low Fuel Waring, Battery Voltage Warning, Hour Meter And Opc Safety Switch. It’S Troubleshooting Made Easy.
- Easy To Service: The Lazer Z S-Series Is Designed To Require Minimal Maintenance, With Just Four Annual Grease Points, Plus Sealed, Maintenance-Free Spindles, And Quick, Easy Oil Changes.
- Ultracut Series 4 Deck: Built From Formed And Welded High-Strength Steel, Ultracut Series 4 Full-Floating Decks Feature Maintenance Free Spindles With Splined Blade Drivers To Stop Bolt Tightening On Impacts. The Idler Arm Pivot Bearings Are Also Maintenance Free.
- Tool-Less Belt Removal: The Deck And Hydro Belts Can Be Installed And Removed Without Tools.
Additional information
| ENGINE | Engine Manufacturer Kohler Engine Type ECV749 Displacement 747 cc |
|---|---|
| GENERAL | Fuel Capacity 12 gal. |
| DECK | Discharge Type Side Discharge |
