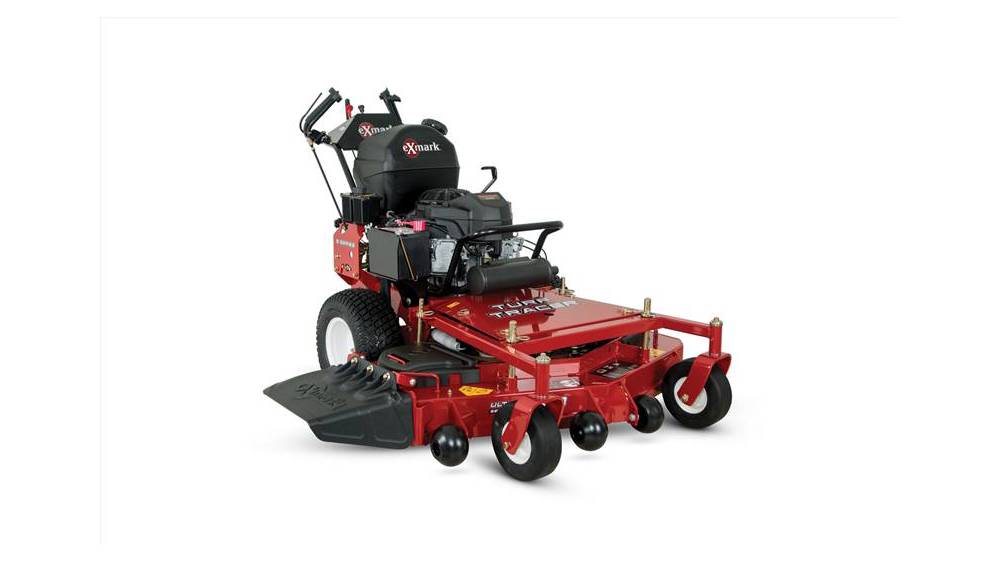

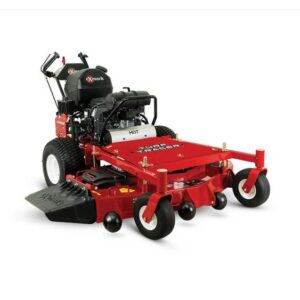

2025 Exmark TTS600GKA523E0 52″ Kawasaki FS600V
$9,787.00
Discover the Exmark Turf Tracer S-Series Mower
With the Exmark Turf Tracer S-Series commercial walk-behind mower, you can choose from a variety of rugged engines. Then, match that power to cutting decks in 36-, 48-, and 52-inch widths. In whatever configuration you choose, you’ll get our patented Enhanced Control System (ECS) for ultimate operator comfort. Which translates to day-long operator productivity.
Features
- New Electric Clutch: Proven To Be Among The Most Durable And Reliable In The Business, Exmark’S Superior Electric Clutch Technology Allows For Easier And Faster Belt Servicing.
- Forget Flats: Standard 9” X 3.5-4” Smooth-Tread, Semi-Pneumatic Front Caster Tires Virtually Eliminate Tire Repair.
- Hour Meter Comes Standard: Improve Maintenance Records And Track Service Intervals For Longer Life.
- Patented Enhanced Control System (Ecs): Recent University Tests Showed Landscape Professionals Prefer Our Control System To All Others On The Market.
- Floating Deck: Full-Floating Ultracut™ Deck. Side Discharge Standard, With Molded Discharge Chute And Option To Bag Or Mulch.
Equipment
- Upc: 193308000114
- Starter: Electric
- Steering Control: Hydro Drive With Enhanced Control System (Ecs), Forward/Reverse, Left/Right Or Zero-Turn.
- Front Caster Tires: 9 X 3.5-4, Smooth-Tread, Semi-Pneumatic.
- Drive Tires: 16 X 7.5-8, 4-Ply Turf Master®
- Safety Package: Operator Presence Controls (Opc). Operator Must Have Speed Control Lever In Neutral And Blades Disengaged To Leave Operator’S Position Without Stopping Engine
- Parking Brake: Lever-actuated mechanical compression.
- Electrical: 12-Volt Battery With 15-Amp Alternator.
- Standard Features: Engine Hour Meter
Power Components
- Engine Brand: Kawasaki
- Transmission Brand: Hydro-Gear
- Transmission Speeds: Infinitely Variable
- Engine Model: Fs600V
- Engine Displacement: 603
- Transmission: Hydrostatic
- Engine Series: V-Twin
- Fuel System: Carbureted
- Speed: Infinitely Variable Speed Selection From 0– 6.2 Mph Forward, 0–2.2 Mph Reverse
- Drive: Hydro-Drive
- Engine Spec: As26-R
- Engine Speed: 3,600 Rpm
- Air Filter: Standard Engine Manufacturer'S Air Filter
- Fuel Capacity: 5-Gallon Single Fuel Tank With Single Fill Location
- Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" tapered shafts.
- Fuel Type: Gas Carbureted
- Pto Engagement: Electromagnetic 105-ft-lb clutch
- Drive Wheel Release: Allows unit movement without engine running.
- Fuel Indicator: None
- Deck Lift: Manual Lift With Hairpin From Hole To Hole For Position Adjustment.
- Carb Compliant: No
Decks
- Deck Style: Floating Deck
- Deck Style Description: Full-Floating Ultracut Series 3, Side Discharge Standard, With Molded Discharge Chute And Option To Bag Or Mulch.
- Width / Cutting Deck: 52"
- Deck Construction: 10-Gauge Top That Is Formed And Continuously Seam Welded, 7-Gauge Side Skirt And 7-Gauge Welded Spindle Mounting Locations For Improved Strength.
- Cutting Heights: 1.5" To 4.5" In 0.5" Increments
- Blade Spindles: No Maintenance, Sealed And Non-Greasable Spindles; 7.75"-Diameter Cutter Housing With 25Mm (.98") Diameter Spindle Shaft And Splined Blade Driver.
- Blade Tip Speed: Approximately 18,500 fpm
- Bag Capacity: 3 Blades At 18.00" Length
- Blades: 3 Blades At 16.25" Length
Dimensions
- Width: 64.3"
- Height: 42"
- Curb Weight: 690
- Length: 75.9"
Additional information
| ENGINE | Engine Manufacturer Kawasaki Horse Power 18.5 HP Engine Type FS600V Displacement 603 CC |
|---|---|
| GENERAL | Transmission Hydrostatic Fuel Capacity 5 gal. |
| DECK | Discharge Type Side Discharge |
