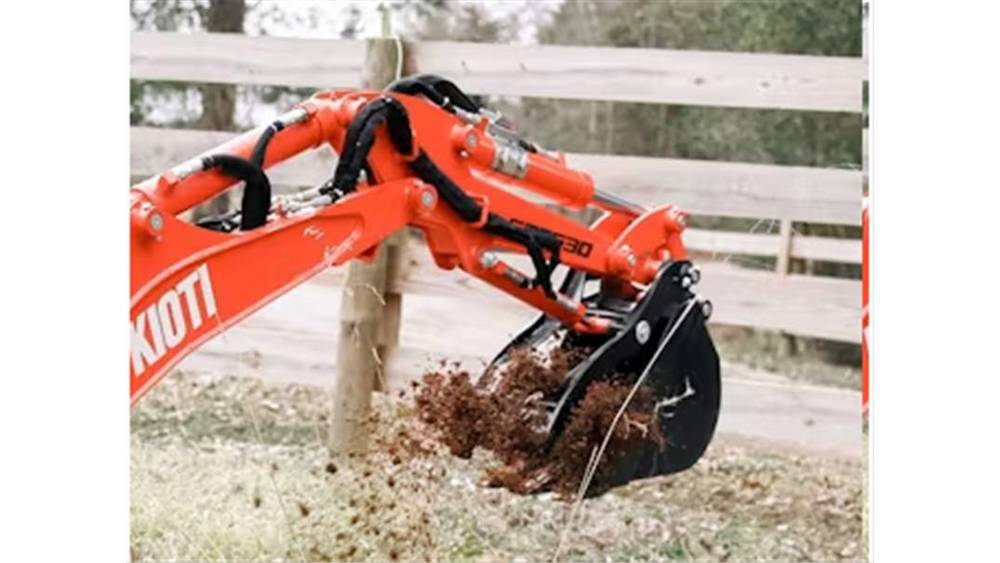

2025 KIOTI Backhoes SB2530
KIOTI backhoes deliver trenching up to 94” deep with a bucket dig force of up to 3,748 pounds. The backhoes feature sub-frame mounting, self-contained hydraulics, two-lever hydraulic controls, hydraulic stabilizers, transport lock and a variety of buckets. Now go dig.
Specifications
- Compatibility: Fits CS30 Series sub-compact tractors.
- Digging Depth: 72.40 in (1,838.96 mm)
- Reach: 105 in (2,667 mm)
- Loading Height: 59.40 in (1,508.76 mm)
- Maximum Leveling Angle: 8 °
- Swing Arc: 150 °
- Transport Height: 68.350 in (1,739.90 mm)
- Transport Overhang: 41.30 in (1,049.02 mm)
- Bucket Rotation: 165°
- Stabilizer Spread Down: 78 in (1,981.20 mm)
- Stabilizer Spread Up: 54 in (1,371.60 mm)
- Departure Angle: 17 °
- Weight: 613 lb (278.05 kg)
- Digging Force Bucket: 2,105 lb (954.81 kg)
- Digging Force Dipperstick: 1,184 lb (537.05 kg)
- Operating Pressure: 1,886 psi (130 bar )
Additional information
| CHASSIS | Dig Depth 72.40 in Reach 105 in Swing Arc 150 ° Weight 613 lb |
|---|
